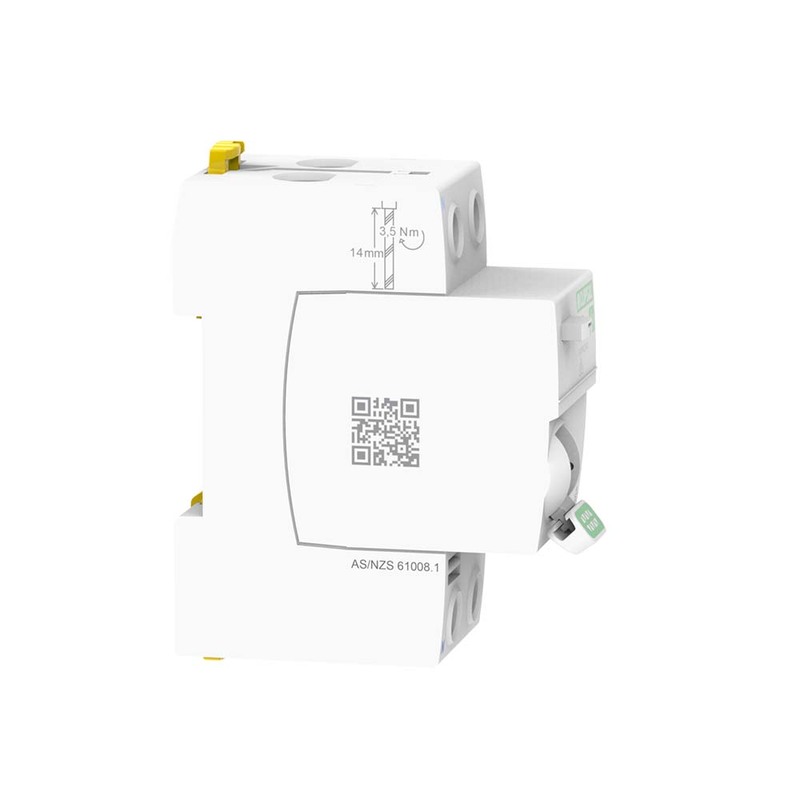

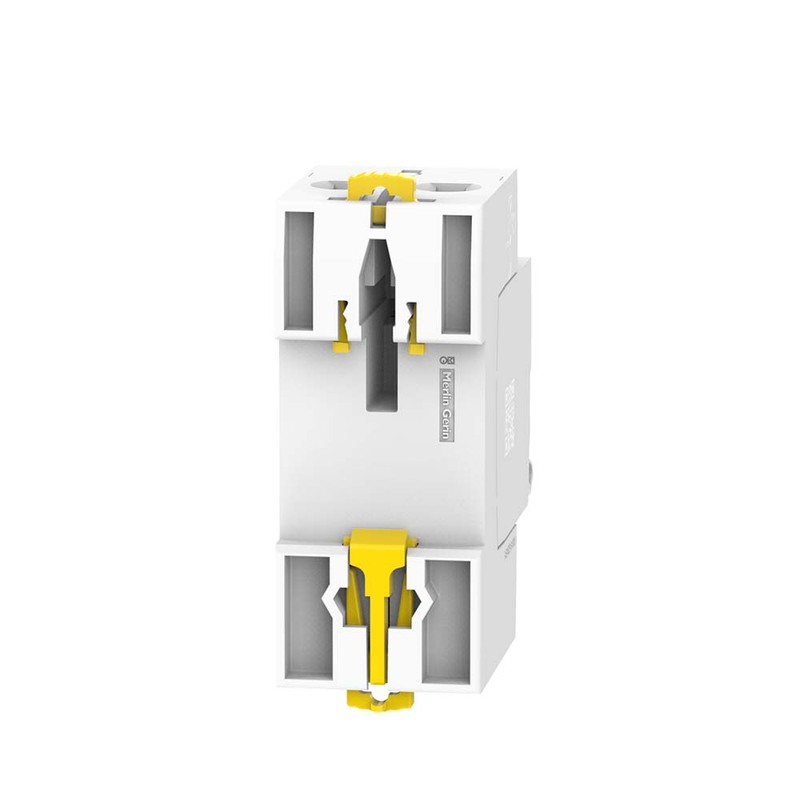

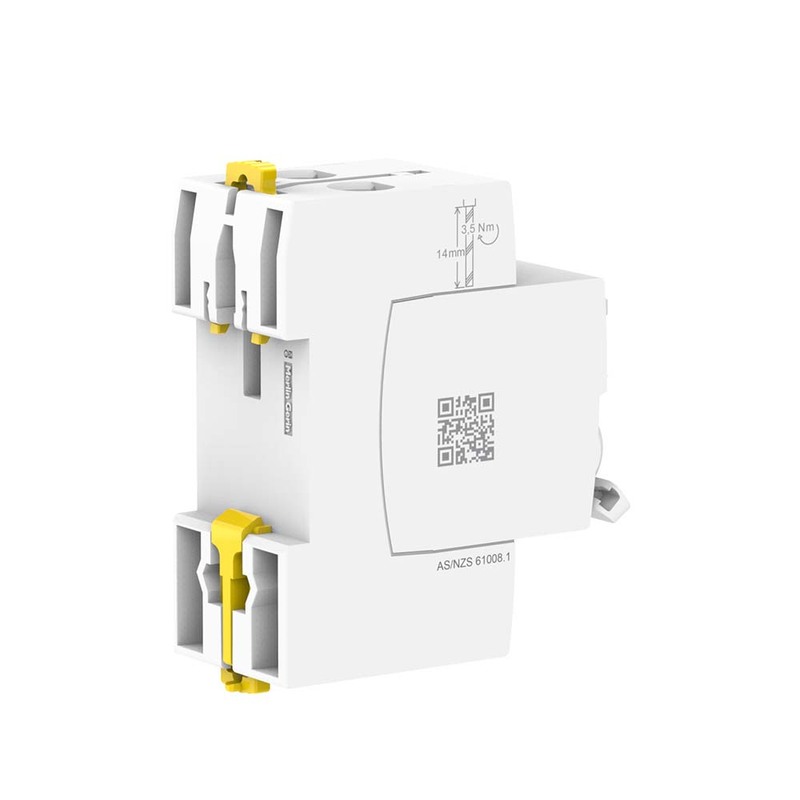

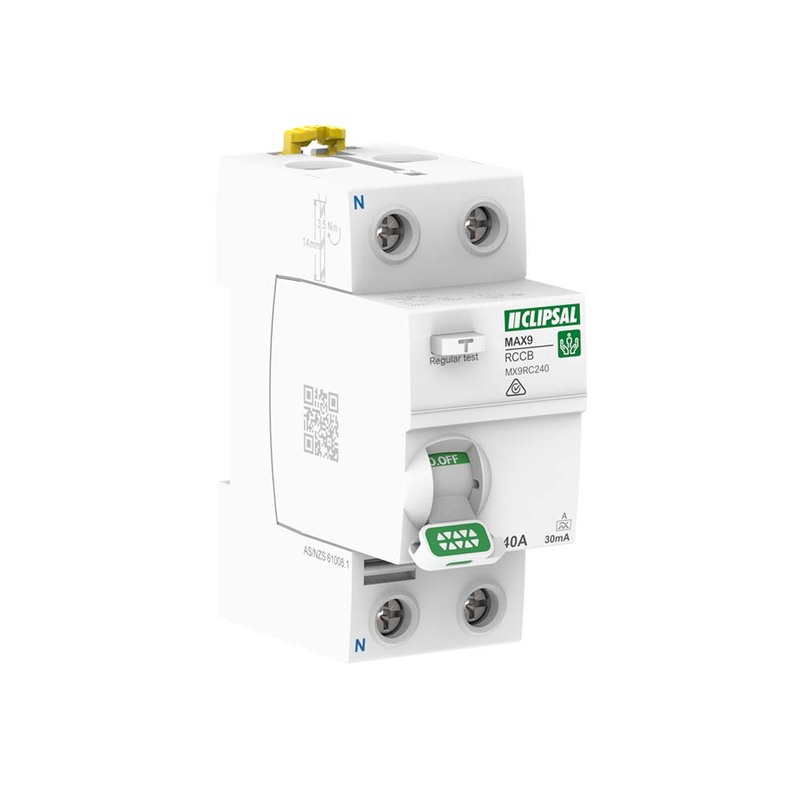

Clipsal 2 Pole 40 Amp 6kA MAX 9 RCD 30mA TYPE A - MX9RC240

The Clipsal MX9RC240 MAX9 product is a residual current circuit breaker (RCCB). MX9RC240 is a 2P RCCB with 40A In rated current, a sensitivity of 30mA with A type protection class..

Features and benefits:

• Covers all potential residential needs
• Line and load can be top or bottom connected, ideal when cabling space is restricted or limited.
• Lift-up terminals. helps to reduce chances of ‘hot spot’ in terminations with all cable strands are locked in
• Compatible with MAX9 18 mm pin type busbar for connections to multiple MCBs
• Double locking clip for ease of installation or removal from MAXBAR
• The earth-leakage protection time delay is instantaneous.
• The (Im) rated breaking and making short circuit capacity is 500A.
• The (Inc/Ic) rated conditional rated short circuit current is 6kA.
• The electrical endurance goes up to 4000 cycles and mechanical endurance is going up to 10000 cycles.
• This product protects against electrical shock by direct or indirect contact and fire hazards.
• It is also compulsory for all equipment in bathrooms, outdoors. As a high sensitivity residual current circuit breaker, it is recommended for all power sockets.
• It has an RCM quality label.
• The Ue rated operational voltage is 240VAC.
• The operating frequency is 50Hz.
• The Ui rated insulation voltage is 440VAC.
• It has a Uimp rated impulse withstand voltage of 4kV.
• It can be mounted on DIN rail for modular installation.
• The width in 9mm pitches is 4.
• The dimensions are (W) 36mm x (H) 85mm x (D) 75mm.
• The product colour is white (RAL9003).
• The product weight is 210g.
• According to IEC 60529 standard, the degree of protection is IP20.
• The pollution degree is 2.
• This product complies with IEC 61008-2-1 and EN/IEC 61008-1 standards.
