MAX9 BUSBAR 18 MODULE 3P+N W/N BLOCK - MX9B318N

MAX9 BUSBAR 18 MODULE 3P+N W/N BLOCK  - MX9B318N

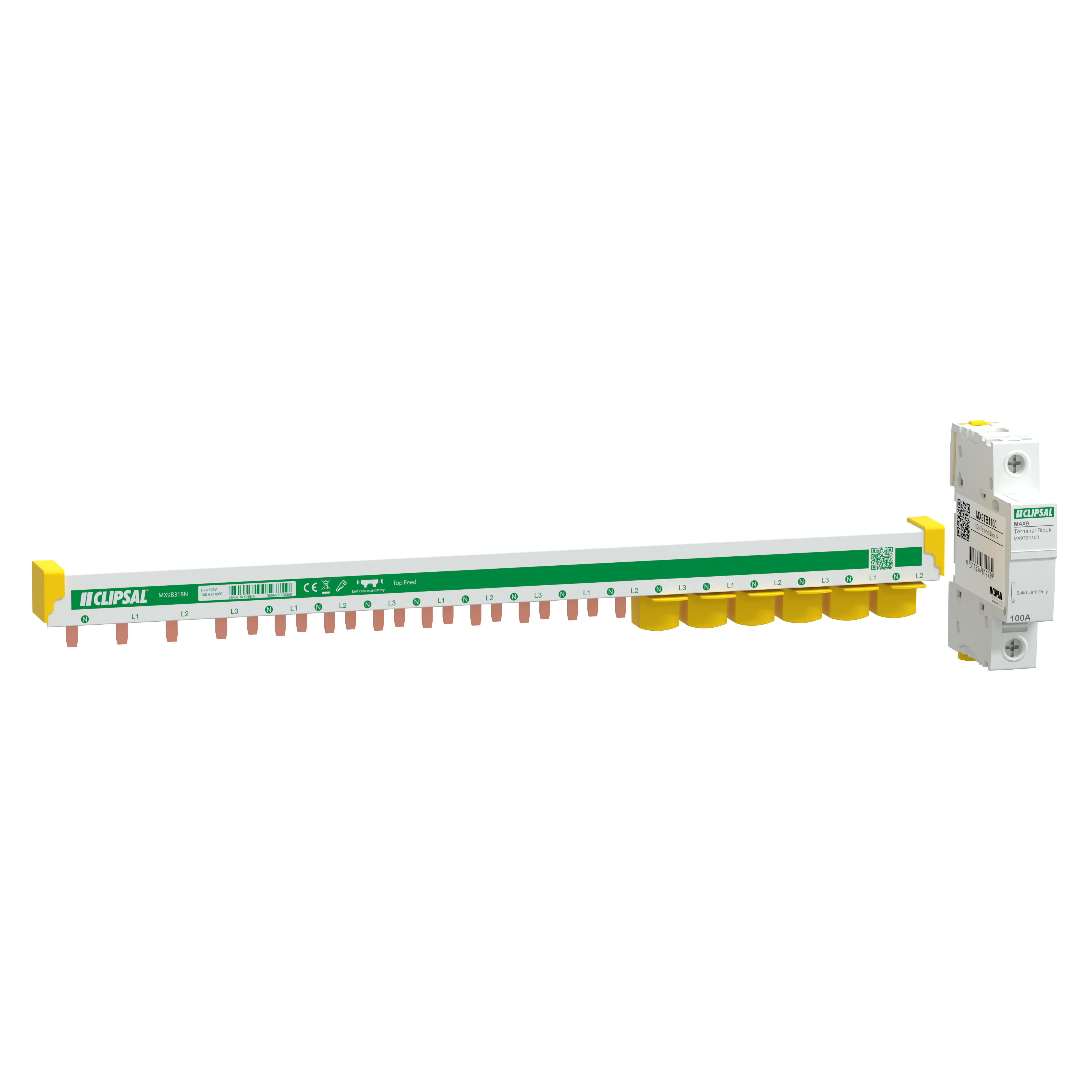

The Clipsal MX9B318N is a MAX9 MAXBAR top-feed comb busbar rated 100A at 400V, configured 3P+N across 18 modules of 18mm pitch with a neutral terminal block. The MX9B318N takes three phases and neutral at the main incomer and combs them across a row of Clipsal MAX9 three-phase protective devices, replacing the cable tails a traditional switchboard loom needs. It complies with AS/NZS 61439-3 and AS/NZS 3000, and ships with the neutral terminal block for single-row boards or the row that carries the main switch.

The row that holds the main switch has to distribute three phases and neutral across its protective devices, which the conventional cable method makes slow and untidy. A single-row three-phase board faces the same task with no separate incomer row to draw from. The MX9B318N handles this with an integrated neutral terminal block and a top-feed comb busbar that lands three phases and neutral in one pass. Its cuttable configuration lets an electrician trim the bar to the exact module count a row requires.

MAXBAR is built to speed up switchboard assembly: Clipsal rates the system at up to 15 times faster than feeding devices with individual cables. The MX9B318N arrives as a kit with the neutral terminal block and tooth covers the incomer row needs, so there is less to source and less to hand-terminate. Feeding three phases and neutral from one comb gives a cleaner assembly that is quicker to verify and hand over. For contractors building three-phase MAX9 boards, the busbar keeps every switchboard consistent from job to job.

Features
100A rated — the MX9B318N carries up to 100A per phase across the bar, matching the main switch and device ratings used in MAX9 boards.
Neutral terminal block included — ships with 1 neutral terminal block, so the MX9B318N suits single-row boards and the row carrying the main incomer.
3P+N configuration — distributes three phases and neutral along the bar, feeding three-phase final sub-circuits without separate cable looming.
400V three-phase rated — rated 400V AC for three-phase distribution across a MAX9 switchboard row.
18 modules of 18mm pitch — spans an 18-way three-phase row, with a 9mm outgoer pitch that lines up with Clipsal MAX9 devices.

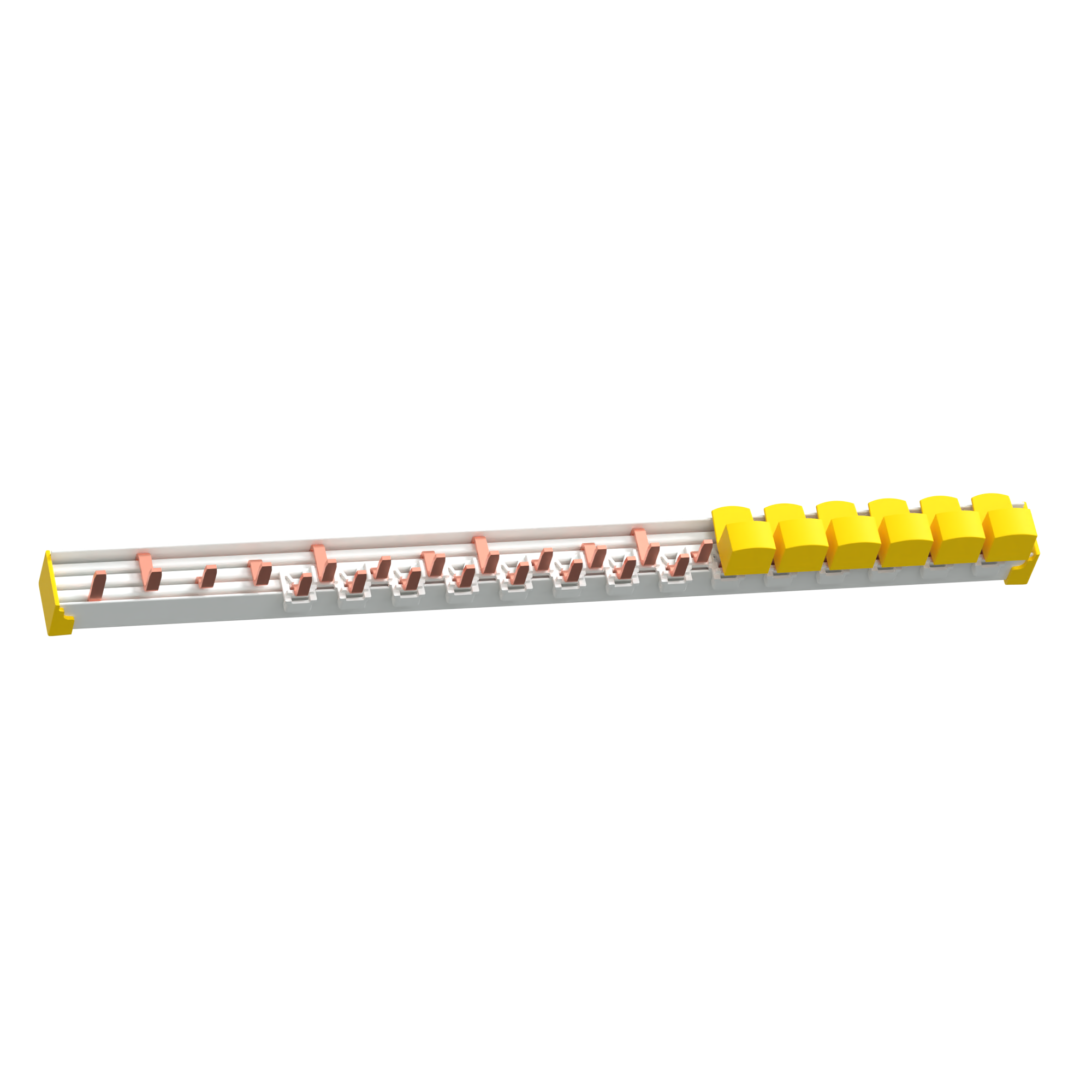

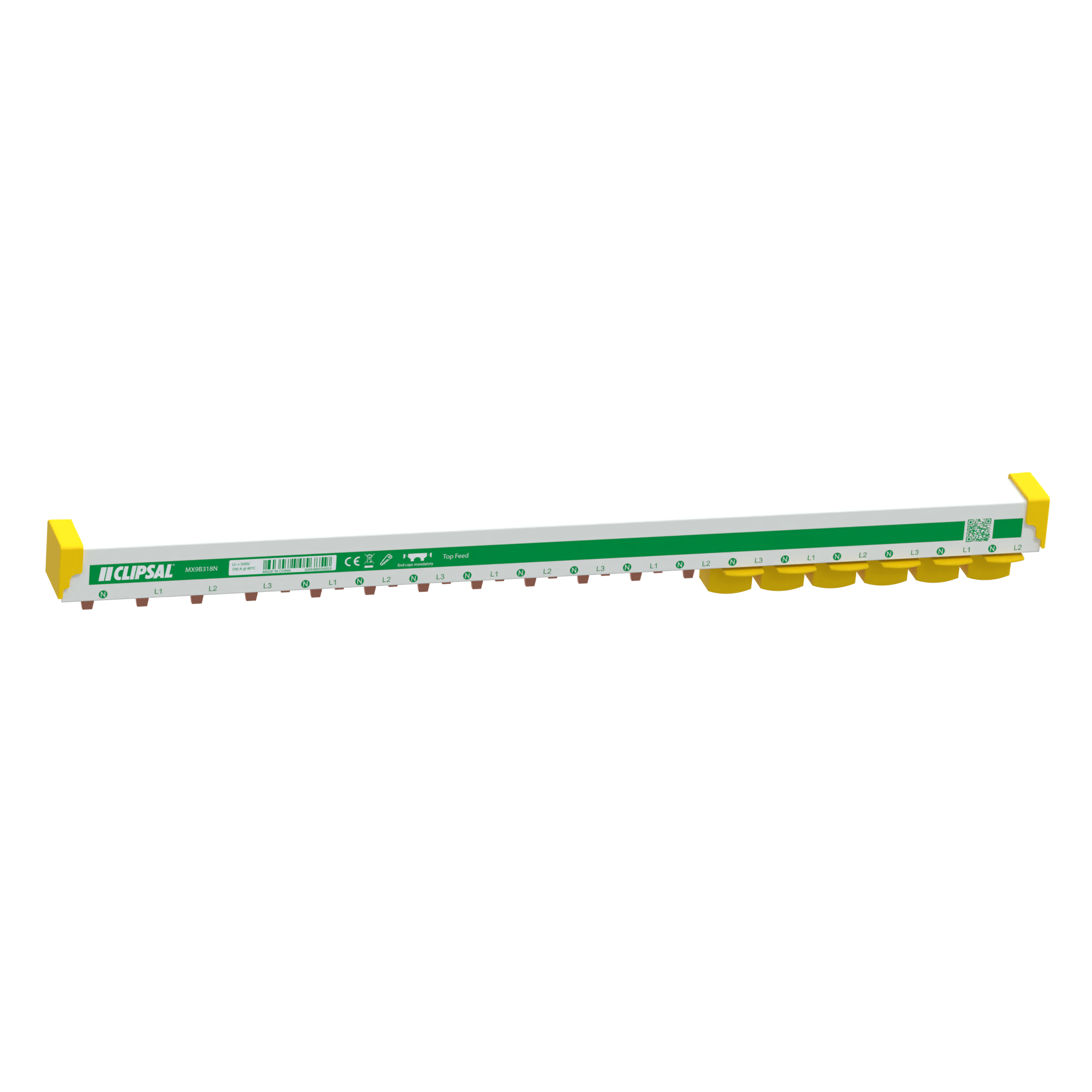

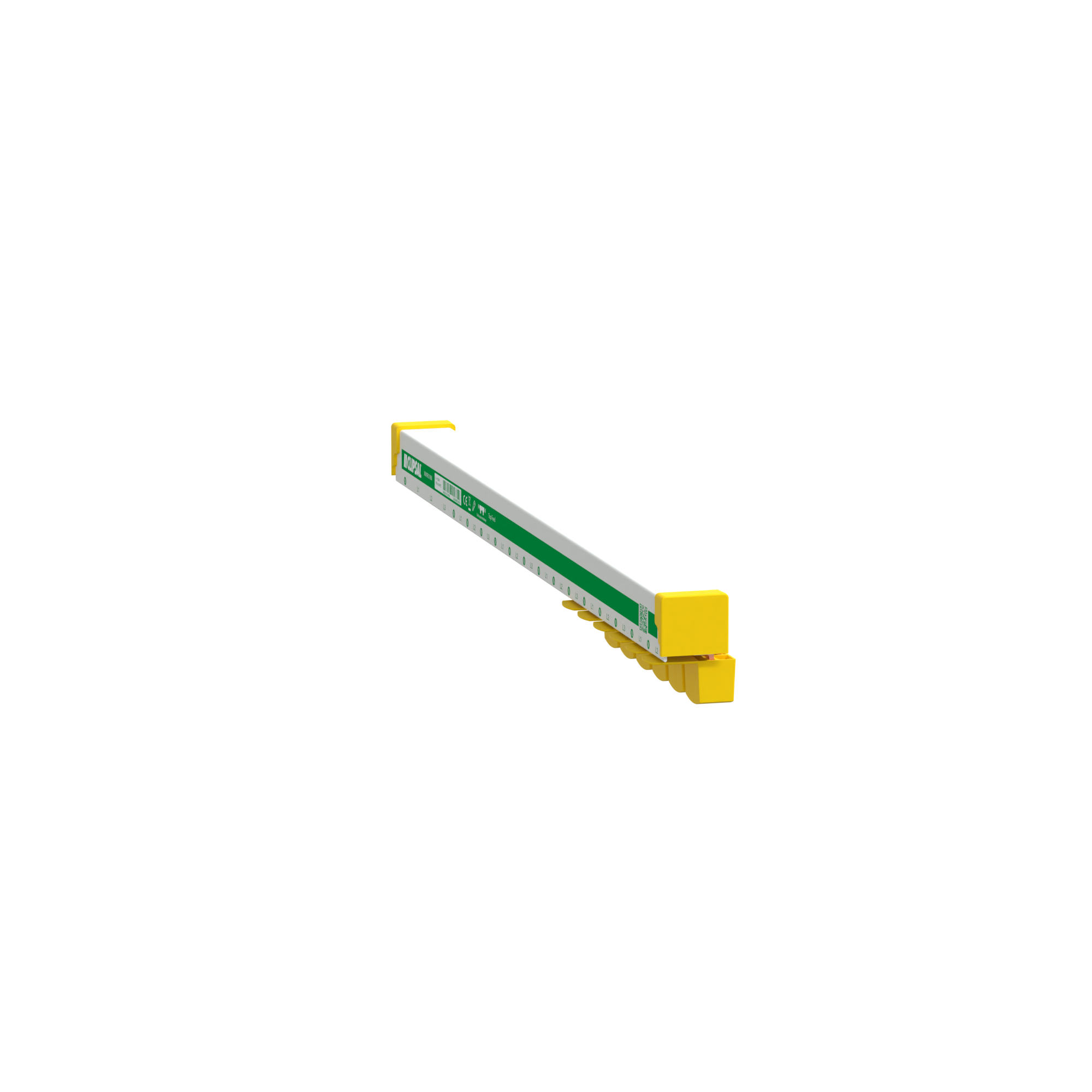

Click here for 360 view of product
