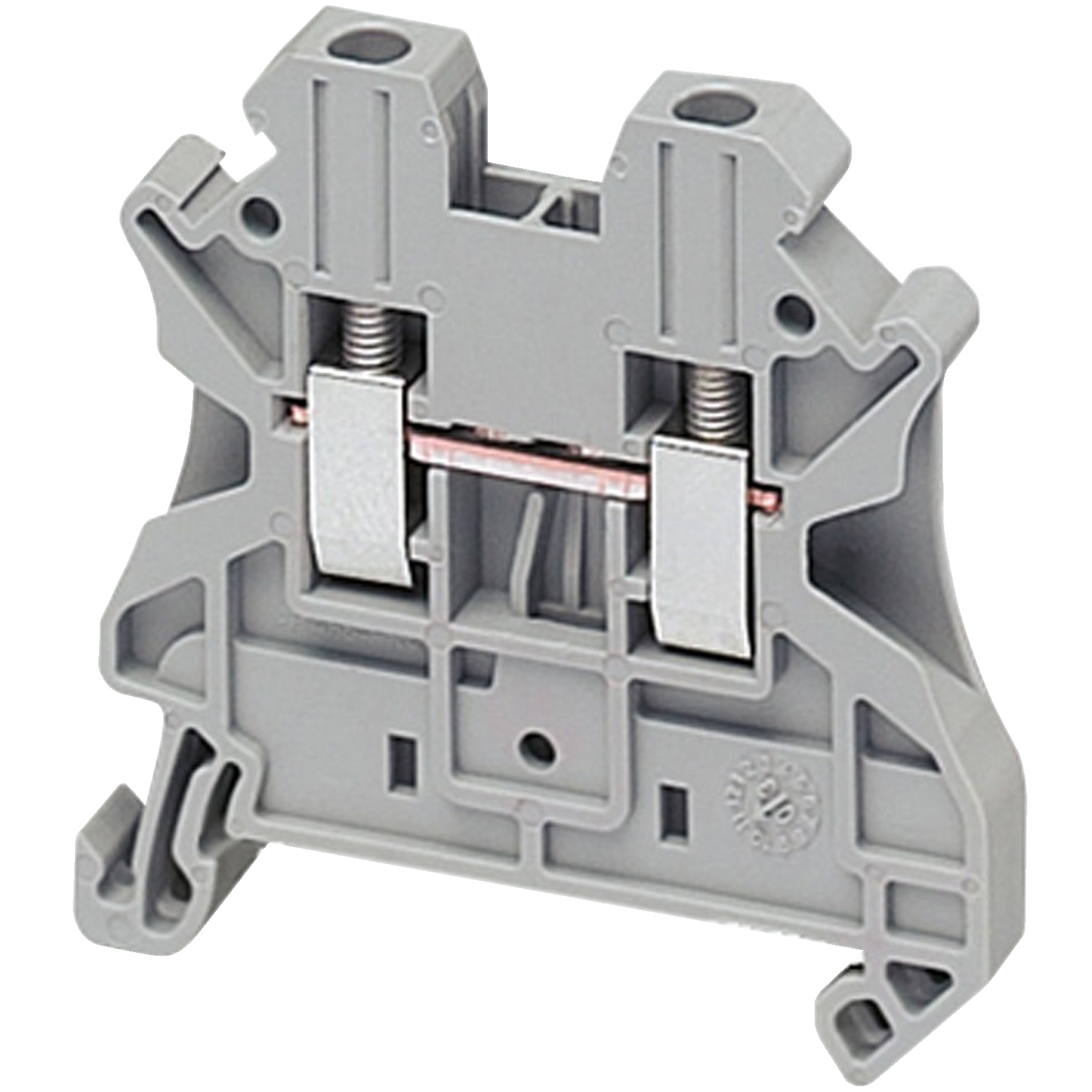

Screw Terminal, Linergy, Feed Through, 2 Points, 2,5mm� , Grey

PLEASE NOTE: This product is SPECIAL ORDER IN ONLY & NOT IN STOCK IN STORE. We will confirm availability via a phone call,SMS or email. If you're happy with the approximate timeframe given, we will then proceed with the order and delivery. If you are unhappy with the wait times, we will cancel the order and issue a full refund

IMPORTANT: As this is a Special Order-In Item, it cannot be exchanged or refunded. You must ensure this product is 100% what you need before purchasing.

Linergy TR is terminal block for Linergy. It belongs to linergy passthrough terminal block with 2.5 mm² nominal cross section. The rated operational voltage is 600V conforming to CSA/cURus, 1000V conforming to EN/IEC 60947-7-1 and 690V conforming to ATEX Exe II Ex II 2 GD. The rated current is 24A conforming to EN/IEC 60947-7-1, 20A conforming to CSA/cURus and 22A conforming to ATEX Exe II Ex II 2 GD. It has grey surface treatment. Mounting by clip-on and sideways connection by single-level 1x1 screw terminals. It could be connection and disconnection by screwdriver. It is compatible with spacial enclosures for Prisma G, Prisma P, Pragma, Prisma PH, Prisma Pack, Spacial, Kaedra, TeSys. Sold in lots of 50 units. Ambient air temperature for operation is from -40 to 130 °C conforming to IEC 60216-1 and VDE 0304-T21. Multi standards certified (ATEX, CSA, cURus, DNV, GL, LR, VDE, IEC-Ex, EAC). It is compliant with Green Premium (RoHS/REACH).
