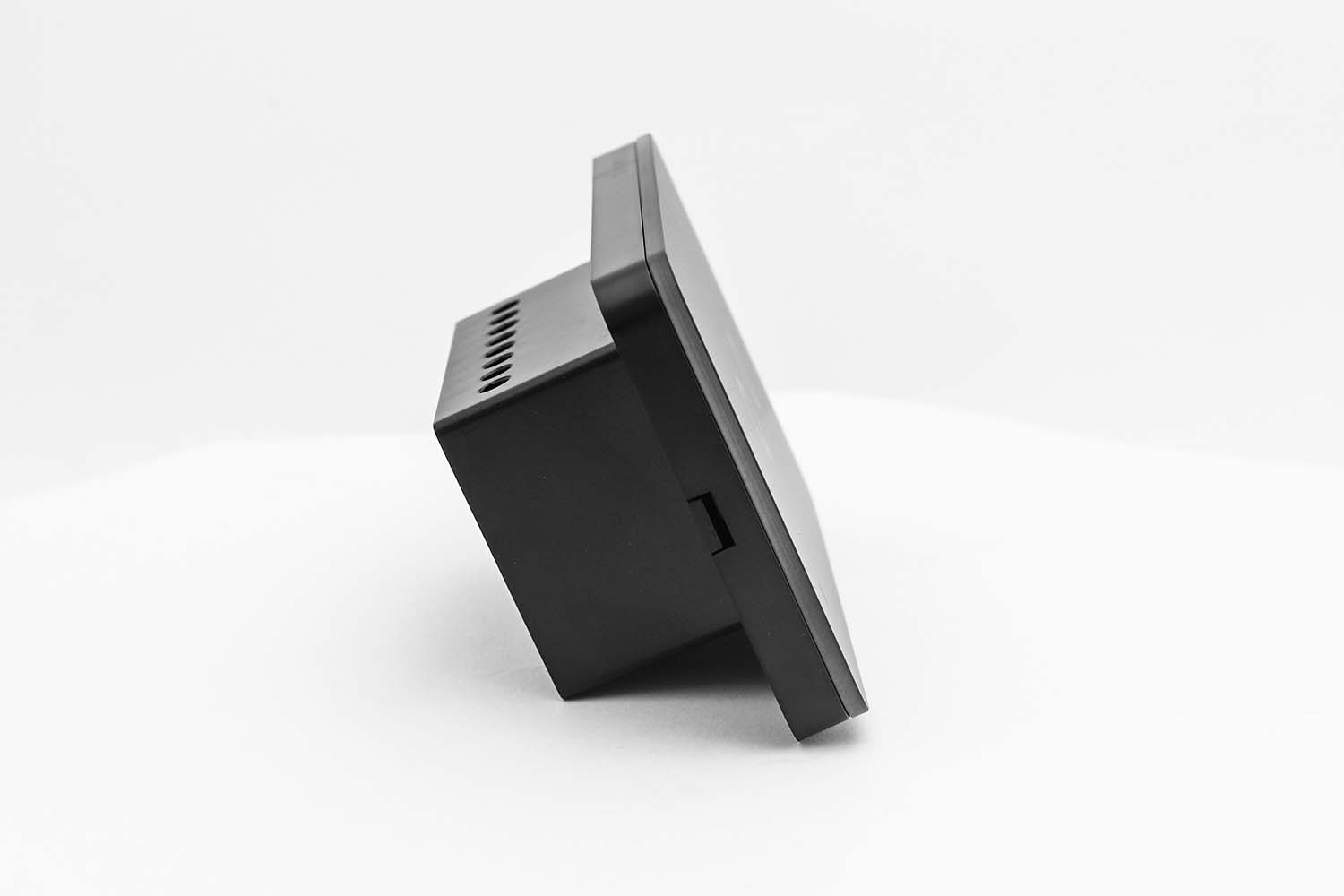

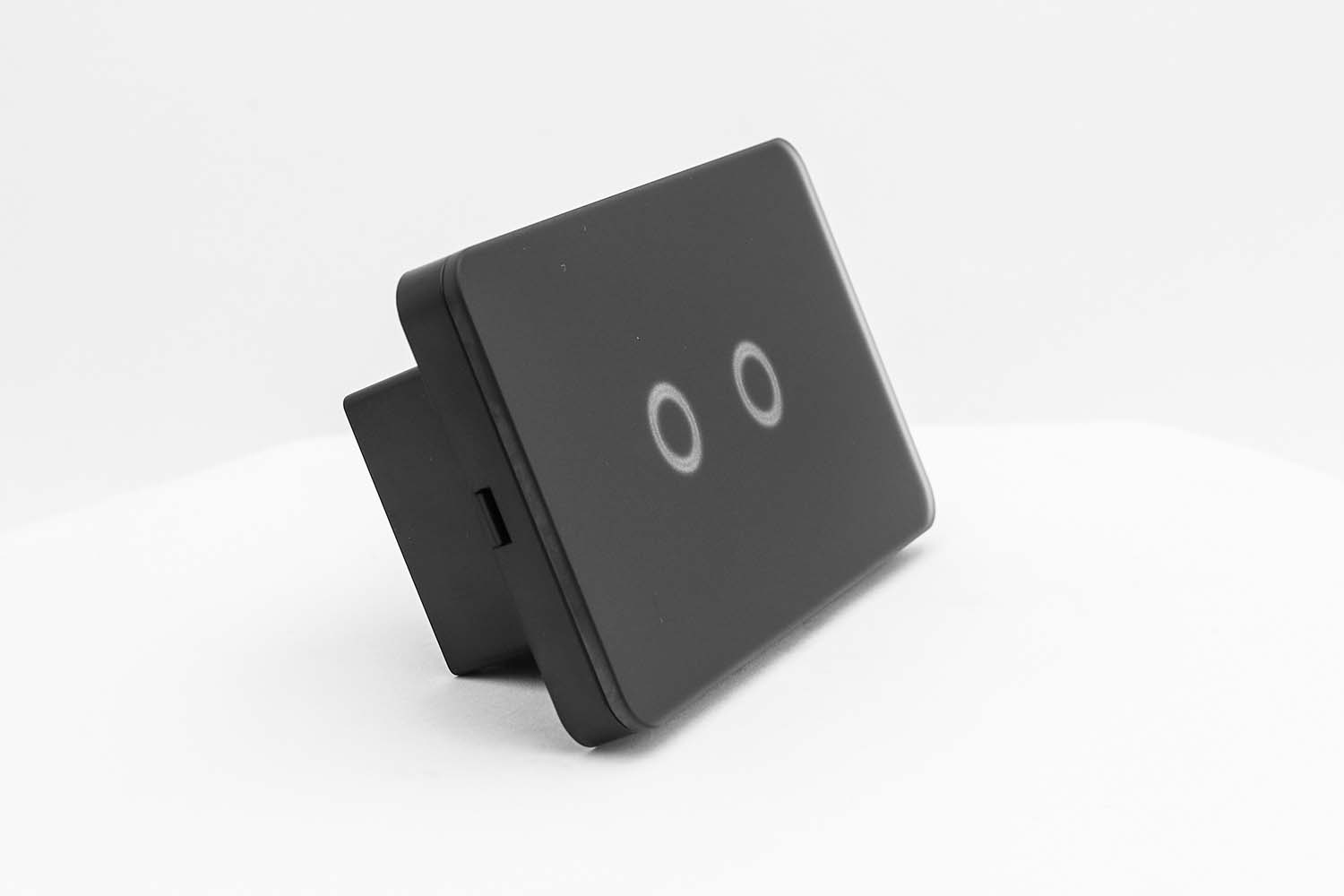

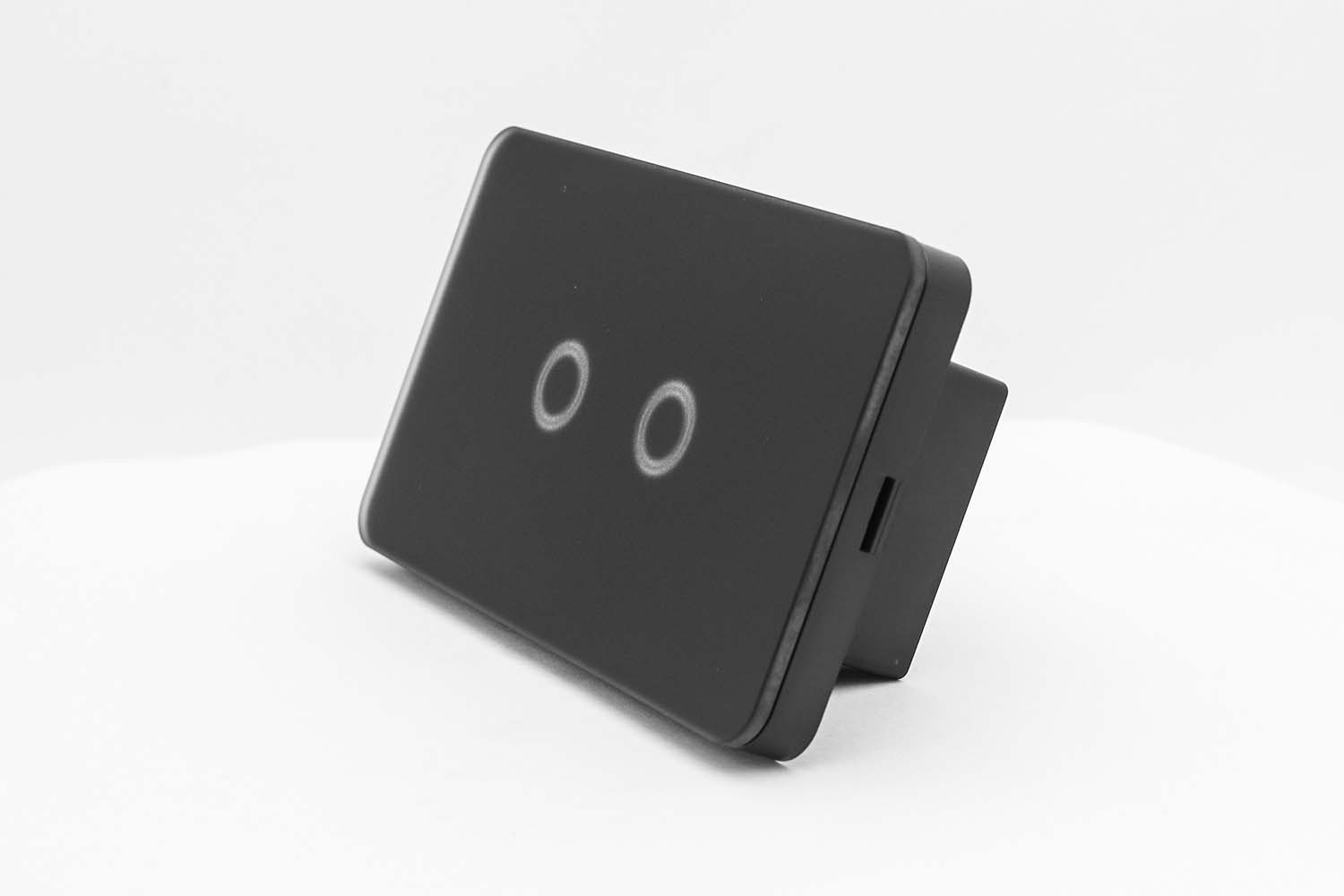

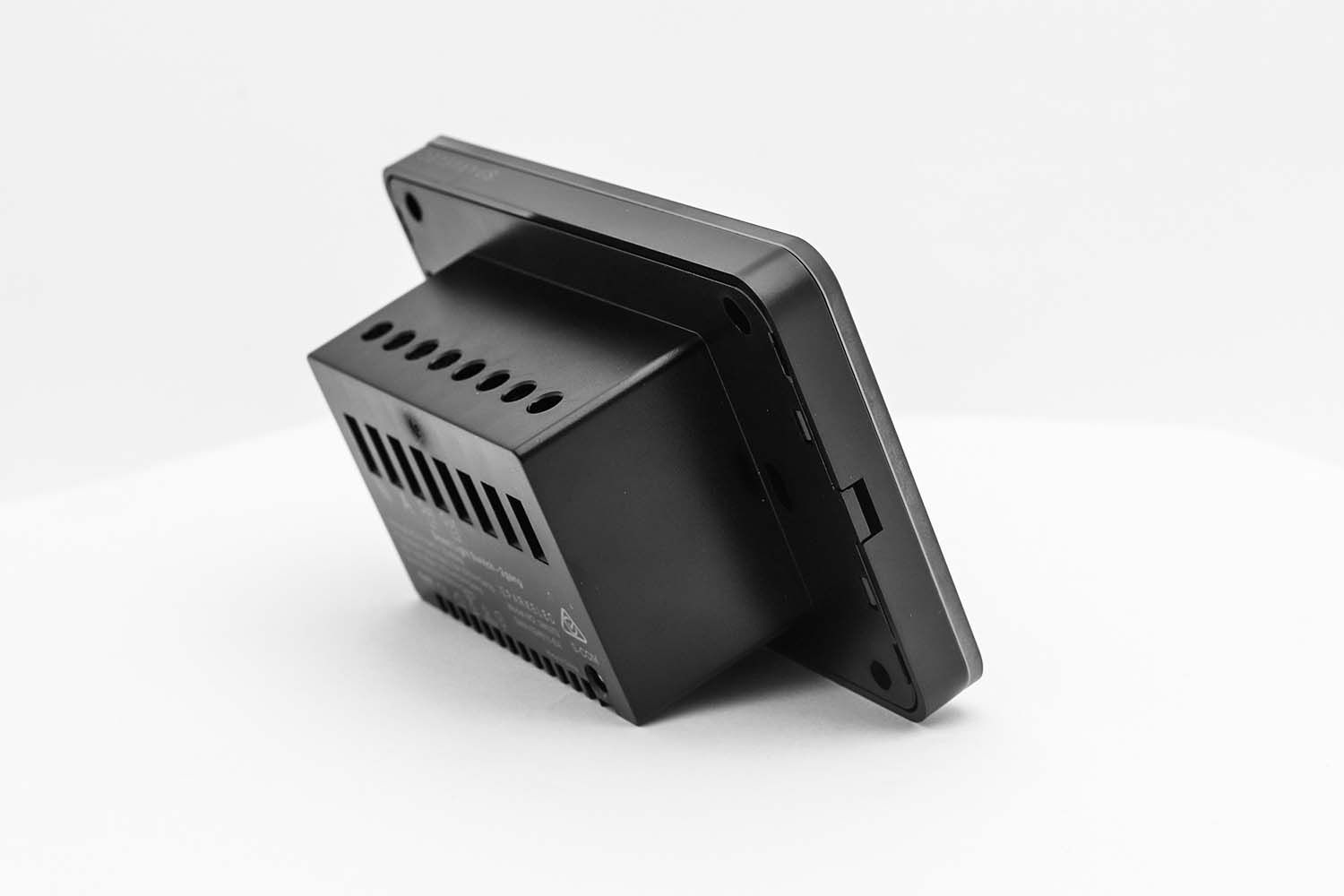

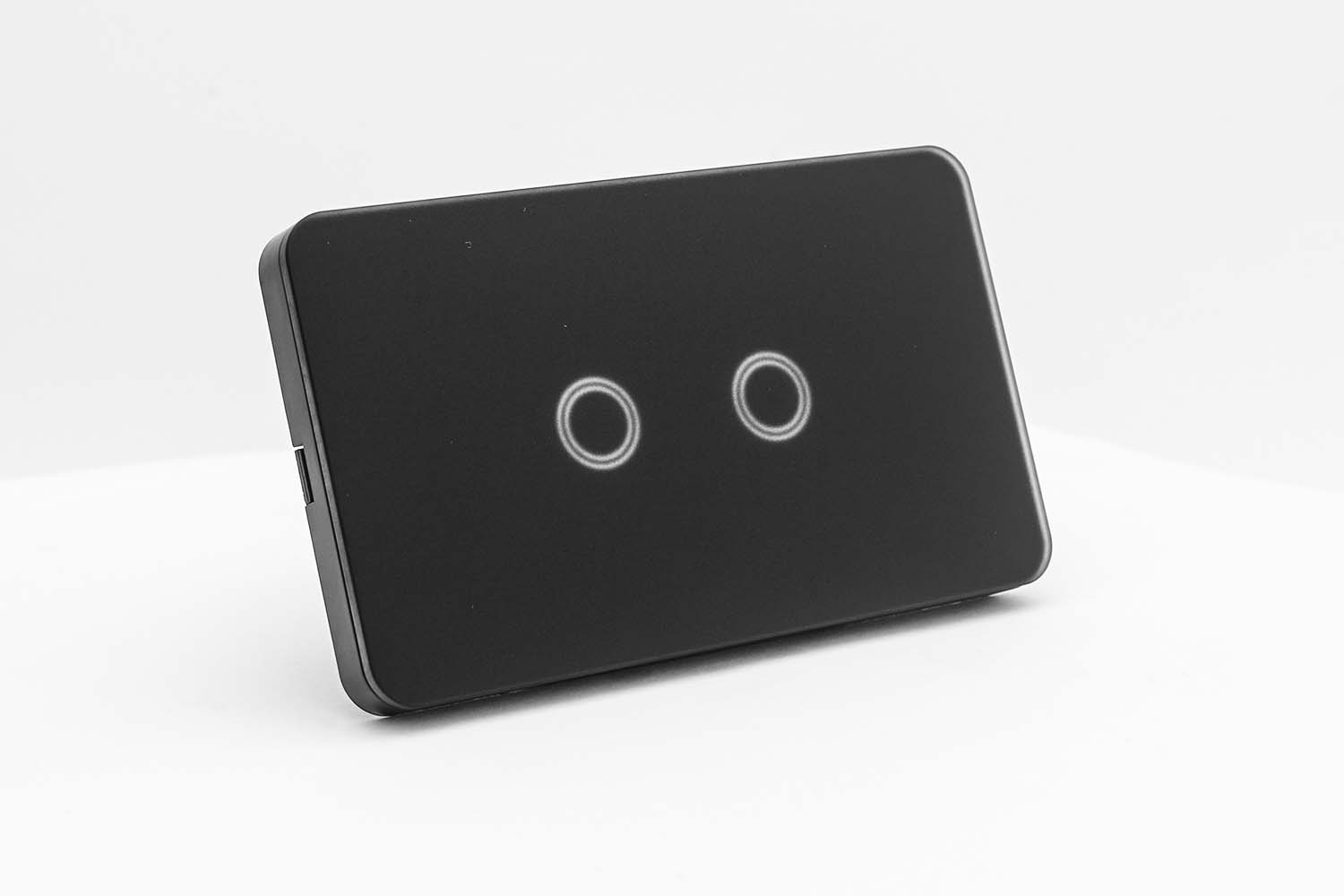

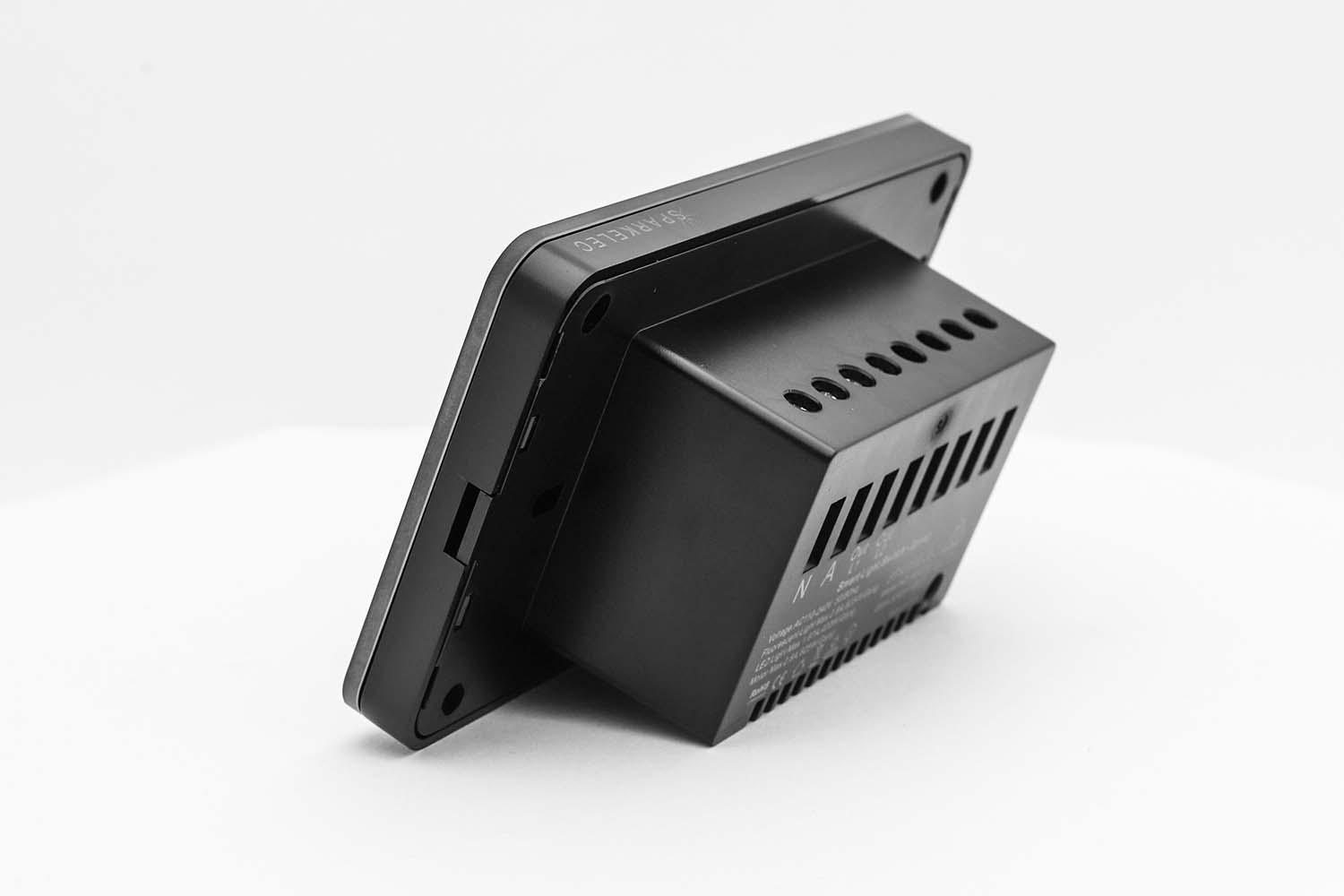

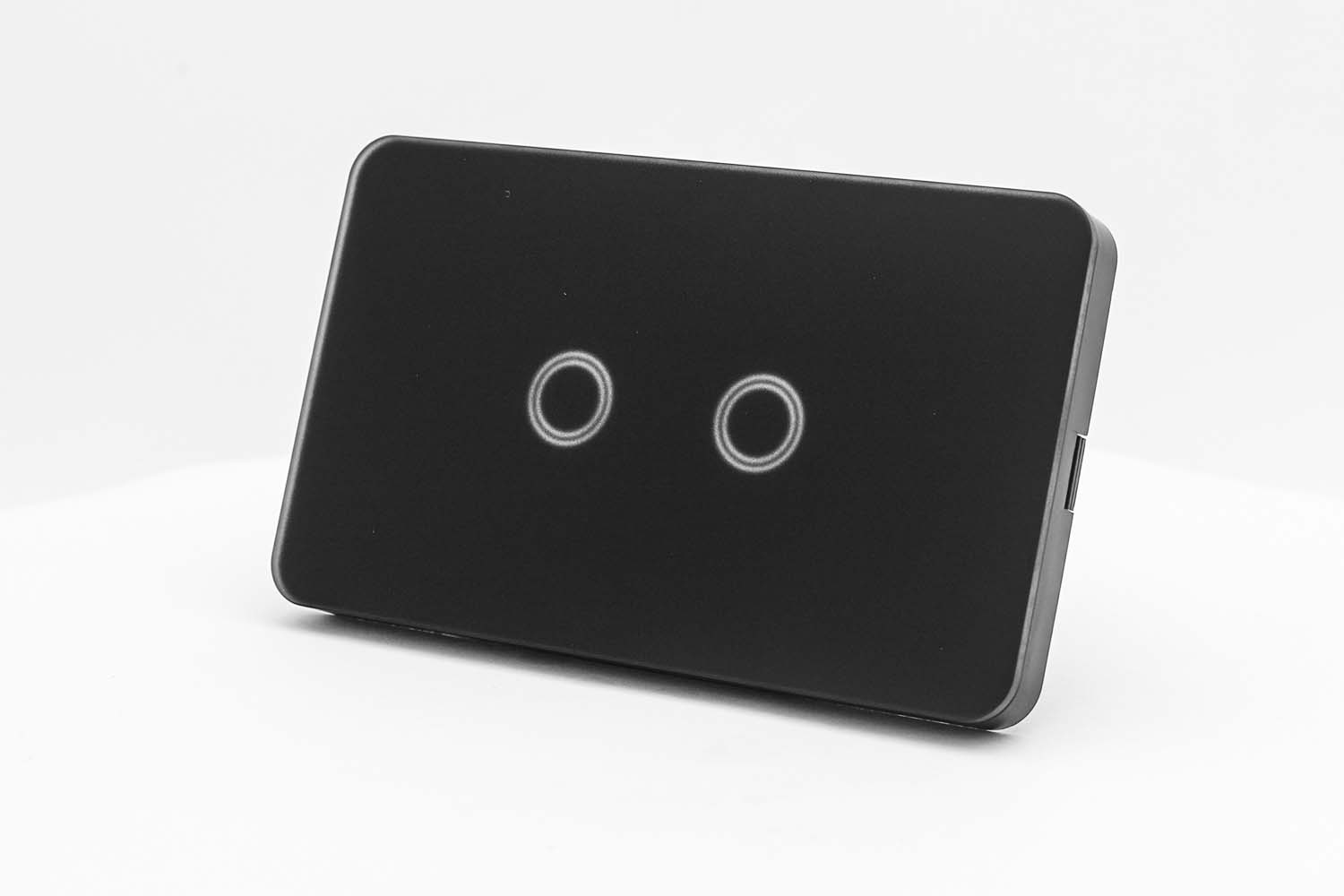

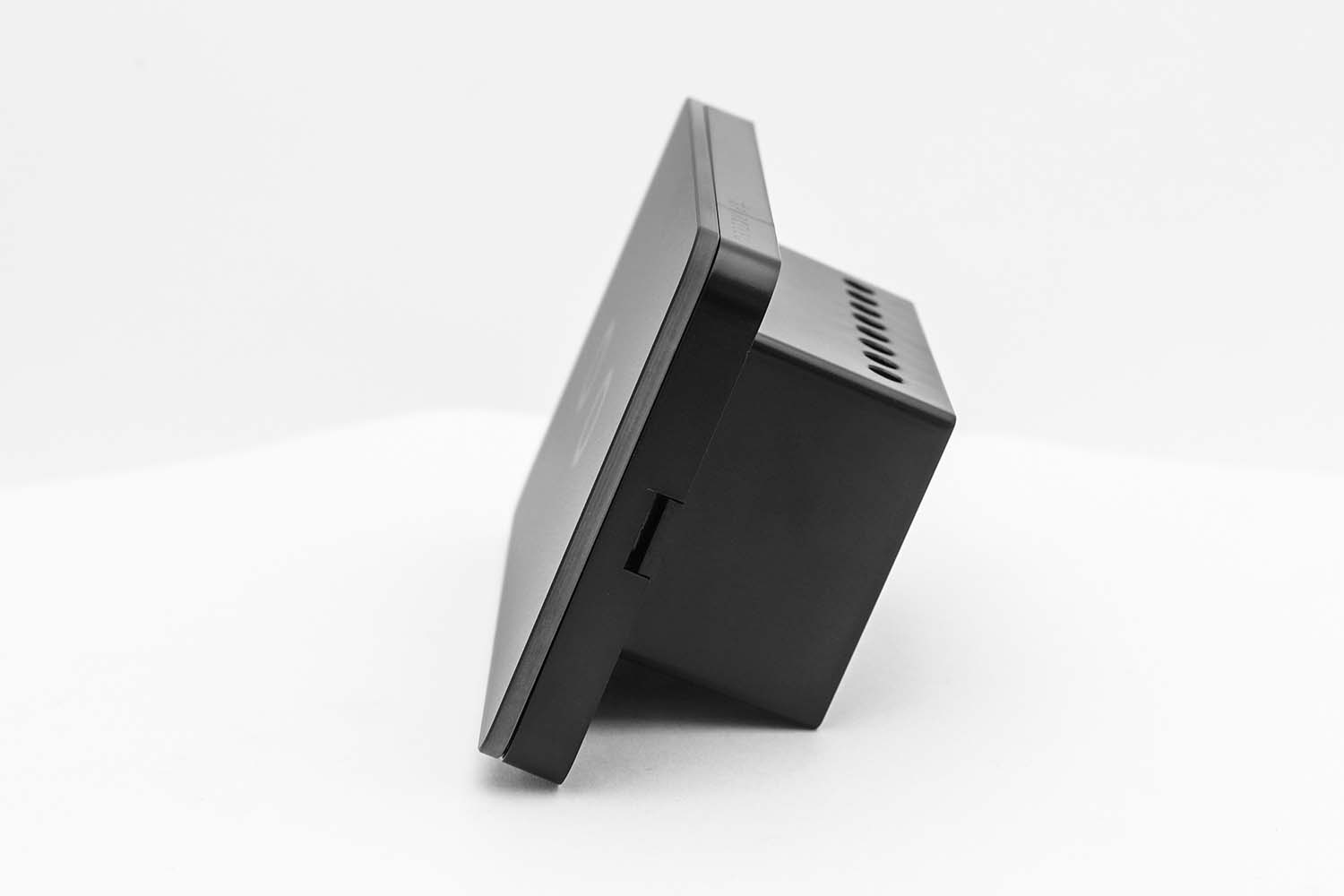

2 Gang Smart Zigbee Touch Glass Wall Switch Midnight Black - SPARKELEC SWS2TZ-BLACK

List price: AUD$120.00
AUD$46.20 (Inc 10% GST)
You save: AUD$73.80 (62%)
SWS2TZ-BLACK
In stock
+
Our quantity discounts:
Quantity 5+ 10+
Price AUD$45.10 AUD$44.55

2 Gang Smart Zigbee Touch Glass Wall Switch Midnight Black - SPARKELEC SWS2TZ-BLACK

Colour: Midnight Black

For Zigbee Internet & App Function to work our Zigbee Gateway Must be Purchased (Code: SPHUB)

  • Designer tempered glass wall plate.
  • Touch ON/OFF control.
  • Blue LED indicator when on. (Red when activated)
  • Max load: 600W Incandescent, 300W LED Per GANG
  • Installation: fits standard plaster/stud brackets (84mm centres).

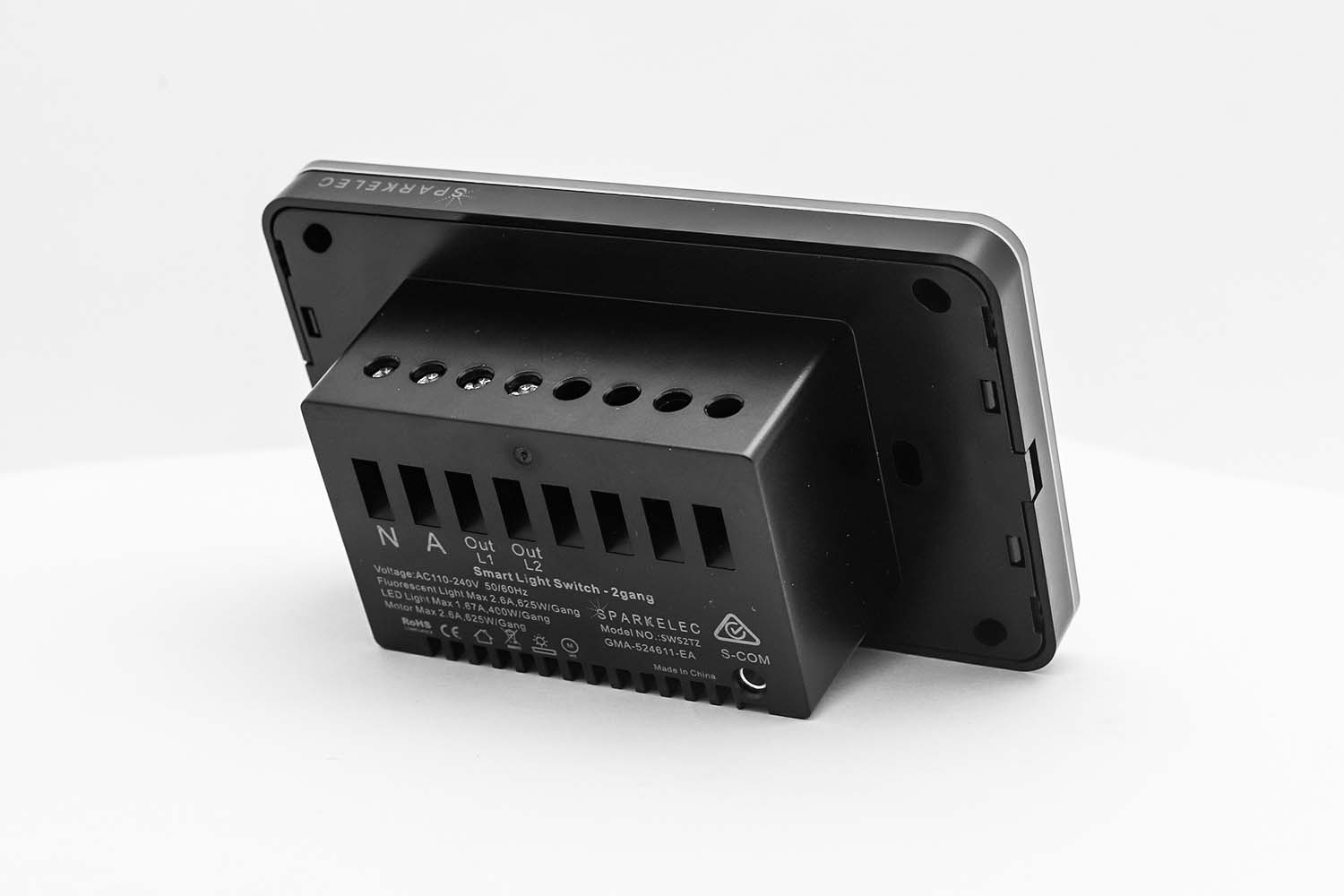

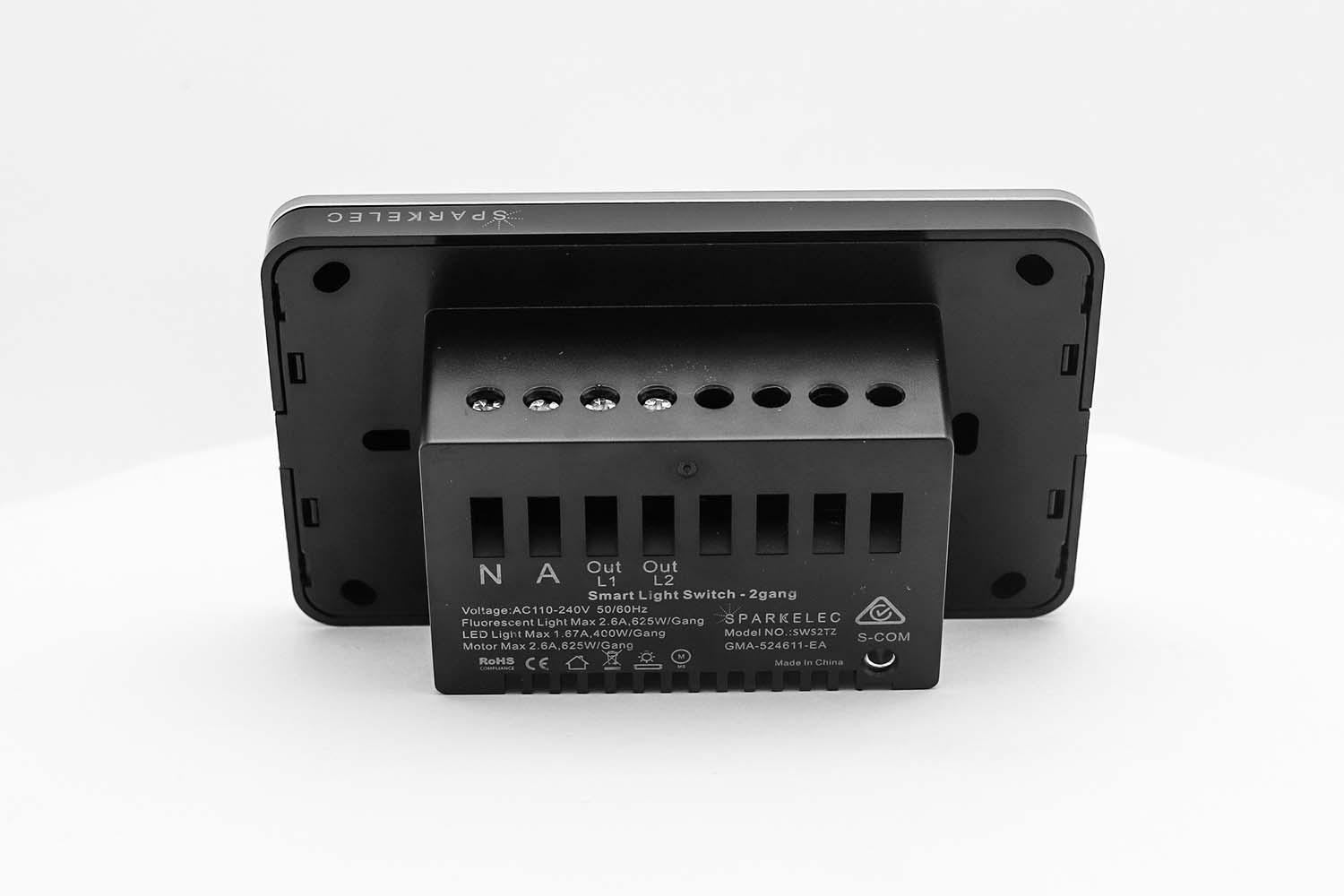

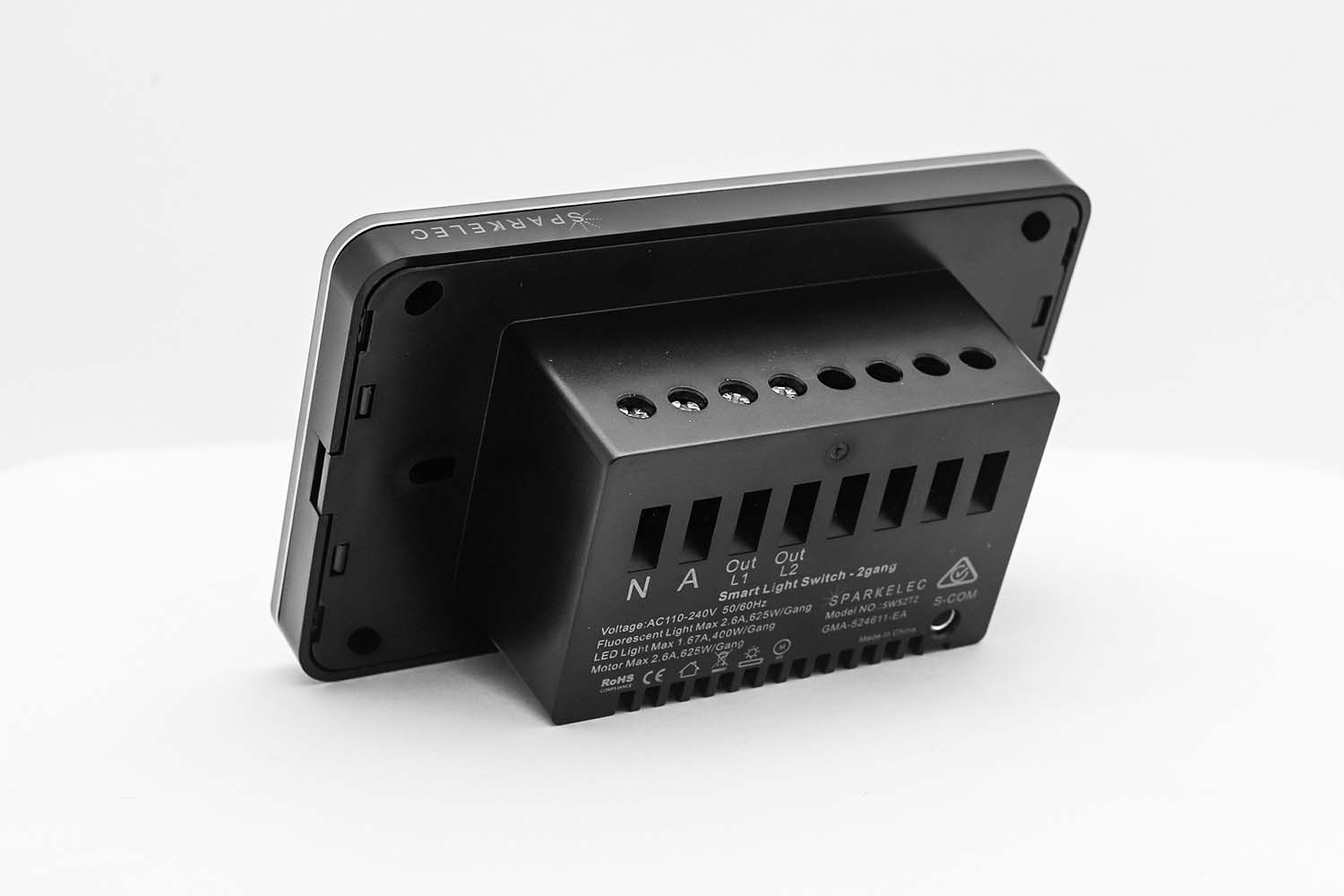

  • Wiring: 20mm2 terminals, suitable for 2.5mm cables.
  • Requires NEUTRAL for operation (3 wires design).
  • Operating voltage 240V 50Hz.
  • Power monitoring to measure energy use of connected appliances.
  • Create schedules & timing to automate your home.
  • Control from anywhere via app or voice control.
  • Connects to other SPARKELEC Smarhome products.
  • FOR THE SWITCHES, LED LOAD MAX IS 250w PER GANG (ignore the pdf manual and other packaging material that has mistakenly been printed as 150w)
  • Universal Vertical or Horizontal Mounting

*Check Attachments Tab for - Product Specifications and Configuration Manual & Australian Product Safety Certification & Approvals

*Sparkelec Smart Home Mobile Application

-Android App via Google Play Store https://play.google.com/store/apps/details?id=sparkelec.smart.home&hl=en_AU&gl=US

-Apple iOS App https://apps.apple.com/lk/app/sparkelec-smart-home/id1629609484

ATTENTION PROGRAMMING CHANGES TO ZIBEE HUB

*Please Note - depending on the batch, there are 2 methods to program the switches with the zigbee hub.

Method 1 - on the "on" position (red indicator) hold down the mech for 7 seconds, the led indicator will then start flashing red. This is when you can scan for more devices on the app (otherwise the new device won't be recognised)

Method 2 - tap on/off "5 times" on the 5th time, hold down the mech for 7 seconds, the led indicator will then start flashing red. This is when you can scan for more devices on the app (otherwise the new device won't be recognised)

Intermittent switch mech lockup - (if you can no longer turn/off the device connected to the Zigbee Switches

- 99% of the item, it means the overload protection (auto lock function) has kicked in.

- The load you have put on is either too much for the switch to handle or you have gone over the maximum VA per switch mech - Purchase our mini 240v power relay (need 1 per gang that is overload) and this wil resolve the issue - HF105F-4 relay located here

- Generally LED Constantly voltage drivers are not competible with the touch switches. You must purchase the HF105F-4 and connect the load to the relay before the load enteres the switch
