Single Core 35mm-630mm X-HF-110 Insulated SDI Cables 0.6/1kV, Flexible AL, LSZH, 110°C

Only available at store

CODE: WWCABLES-SPECIAL-ORDER

Availability: In stock

Description
Attachments

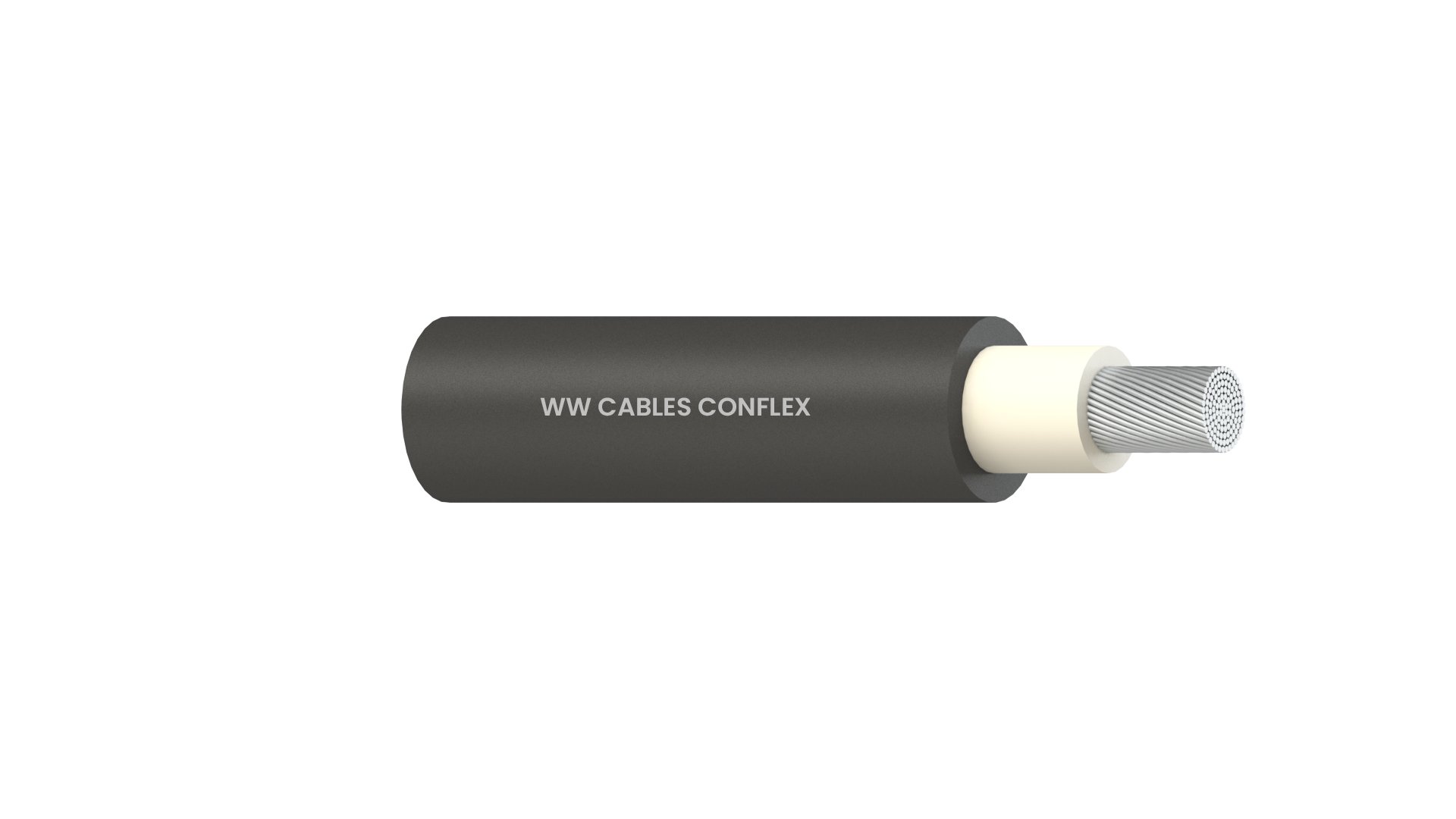

World Wire Cables Flexible Aluminium Cable

- Single Core Between 35mm to 630mm

Conductor: Flexible Aluminium
Insulation: Low Smoke Zero Halogen X-HF-110
Sheath: Low Smoke Zero Halogen HFS-110-TP

Sheath Colour Black

Technical Data
Voltage Rating: 0.6/1kV
Operating Temperature: -40°C to +110°C
Short Circuit Temperature: 250°C for 5 sec
Standards Compliance
AS/NZS 5000.1 AS/NZS 1660.5.6 (Equivalent to IEC 60332-1)
AS/NZS 3808 AS/NZS 1660.5.1 (Equivalent to IEC60332-3-24)
AS/NZS 1125

SMAL35X2H29-BK - 35mm

AL50X2H2 - 50mm

AL70X2H2 - 70mm

AL95X2H2- 95mm

AL120X2H2 - 120mm

AL150X2H2 - 150mm

AL185X2H2 - 185mm

AL240X2H2 - 240mm

AL300X2H2 - 300mm

AL400X2H2 - 400mm

SMAL500X2H29-BK - 500mm

SMAL630X2H29-BK - 630mm
