**NEW GENERATION 2023 MODEL - WORKS WITH LIF5800/6000 OLD BASE
240V AC mains powered photoelectric smoke alarm with rechargeable lithium back-up battery.
ActivFire certified and approved to AS3786:2014.

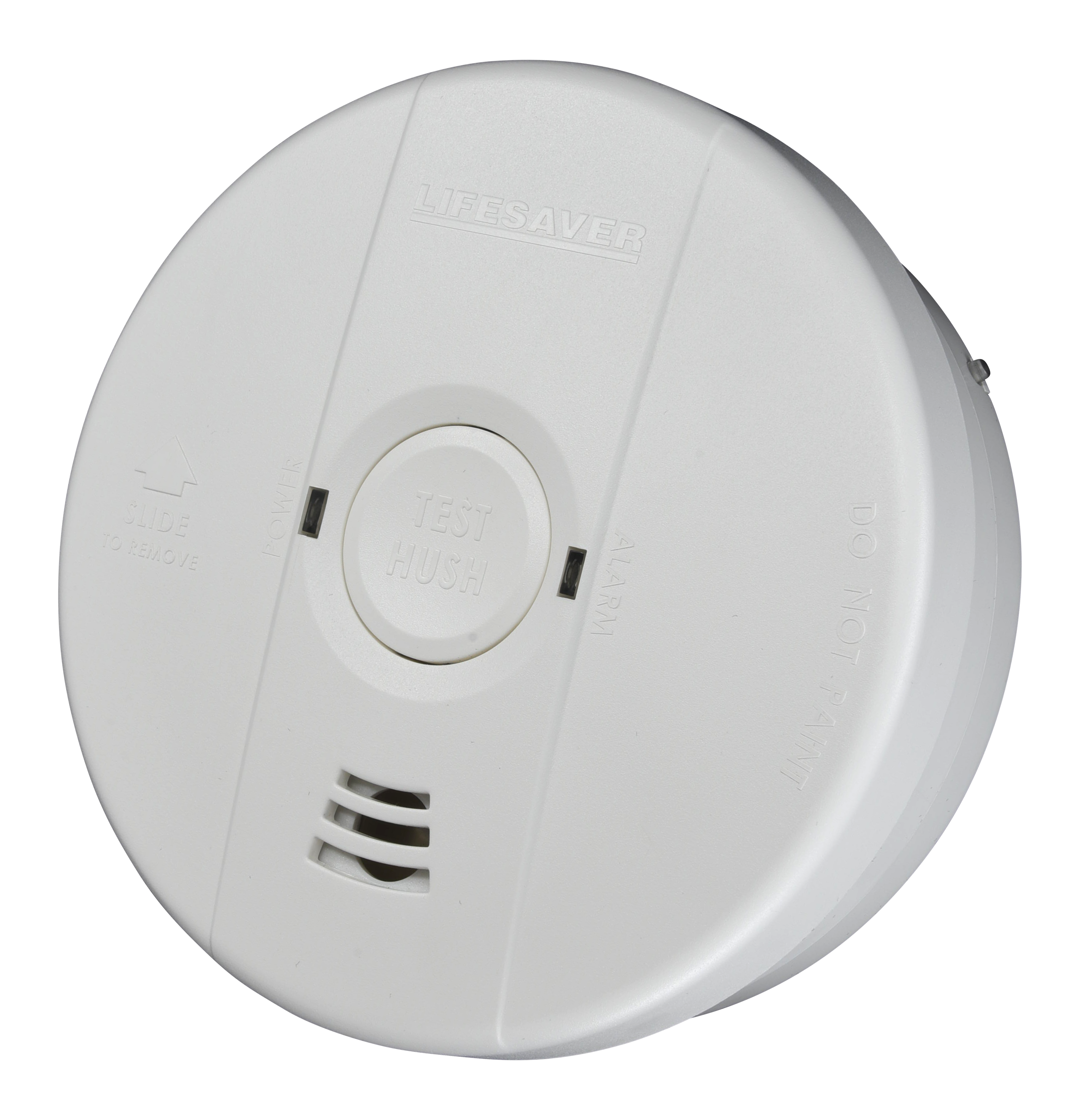

240V AC mains powered advanced sensor photoelectric smoke alarm with rechargeable lithium battery.
ActivFire certified and approved to AS3786:2014.
The enhanced Lifesaver 6800RL model feature state-of-the art detection technology and design improvements for optimal performance and increased resilience to false alarms.
The Lifesaver Advance range is the latest innovation in smoke alarms and provides a solution to Australia’s varied and severe conditions.
In addition to using the latest photoelectric sensing technology, the Lifesaver LIF6800RL features advanced sensor intelligence to provide improved performance and a reduction in false alarms.
MODEL |
6800RL |
---|---|
SENSOR TYPE |
Photoelectric – Advanced Sensor |
SUPPLY VOLTAGE |
240V AC 50Hz |
POWER CONSUMPTION |
10mA max per alarm, 4mA (standby) |
BATTERY BACK-UP |
Rechargeable lithium (non-replaceable) 10 year life |
INTERCONNECTING |
Interconnectable up to 24 units |
ALARM VOLUME |
85dBA at 3 metres |
ALARM SIGNAL PATTERN |
ISO8201 (T3 – Repeat 3 long beeps) |
TEMPERATURE RANGE |
0˚C – 40˚C |
HUMIDITY RANGE |
Up to 93% RH (non-condensing) |
HUSH FUNCTION |
Silences alarm for 9 minutes |
LOW BATTERY HUSH |
Silences low battery beeping for 8 hours |
ALARM DURATION |
Alarm will sound for as long as smoke is detected, then unit will automatically reset when smoke clears. |
ALARM INDICATION |
Red LED flashes every second. |
ALARM MEMORY |
Red LED flashes 3 times every 40 seconds. |
CHAMBER MONITORING |
3 beeps every 40 seconds. |
INDICATOR LEDS |
Green LED – Power indicator |
WIRING TERMINAL |
9V, Active, Switch, Neutral, Loop |
DIMENSIONS |
130mm (diameter) x 45mm (depth) |
APPROVALS |
ActivFire, SAI Global, RCM, AS3786:2014 |
WARRANTY |
5 years |
